- is_customized: No

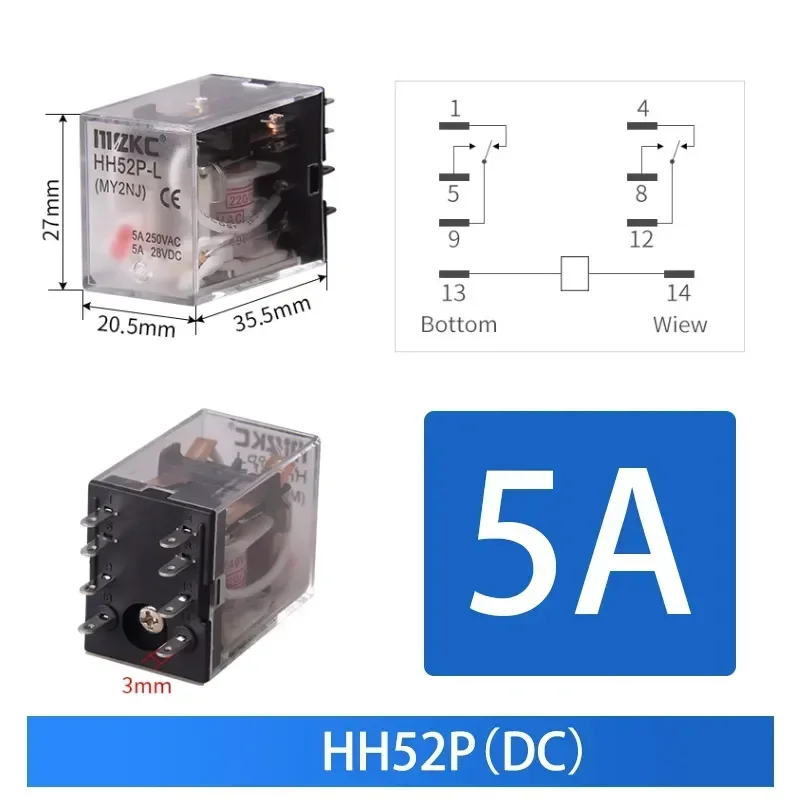

- Model Number: HH52P
- Voltage: 12V 24V 220V
- Origin: Mainland China
- Use: General Purpose
- Protect Feature: Sealed
- Power Source: AC
- Voltage: 12V 24V 220V
- Usage: General Purpose
- Protect Feature: Sealed
- Origin: Mainland China
- Model Number: HH52P

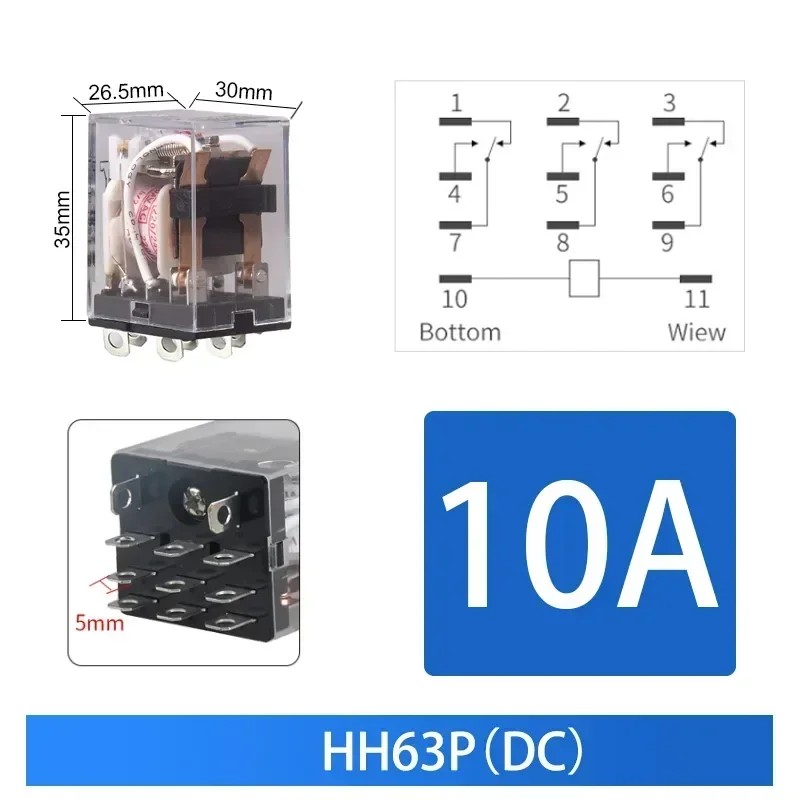

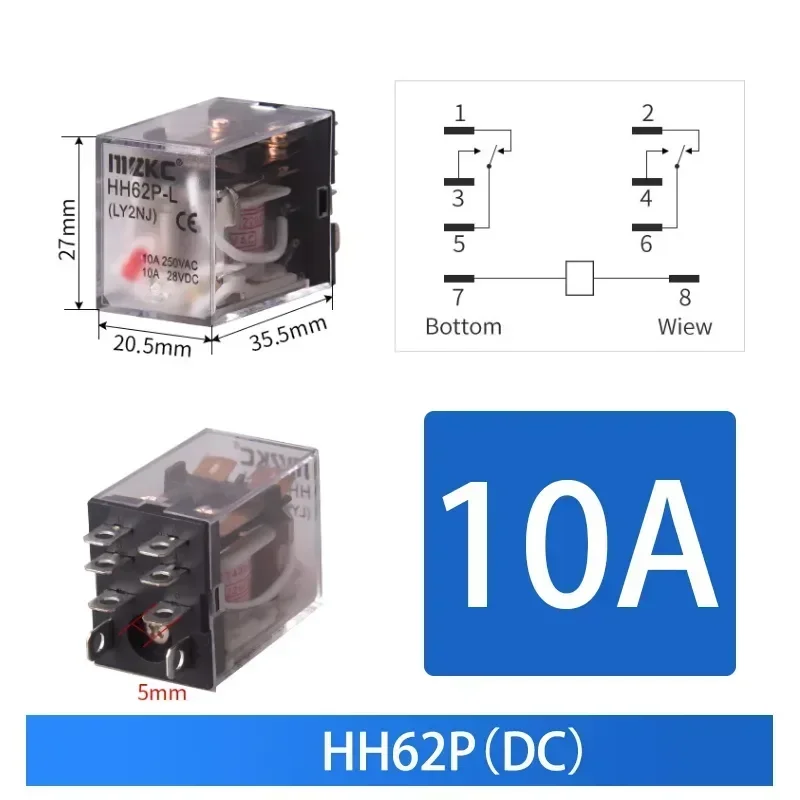

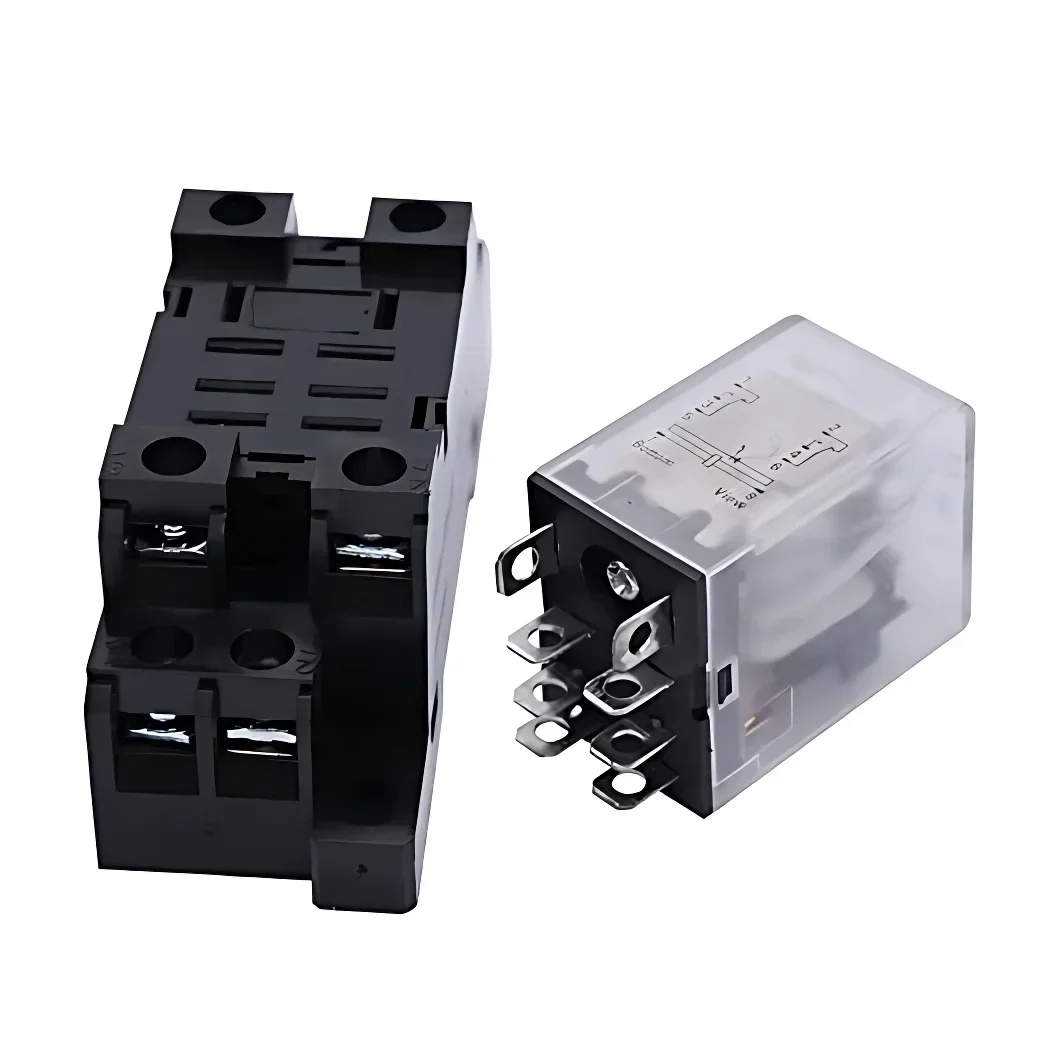

Miniature control relays
■ Description

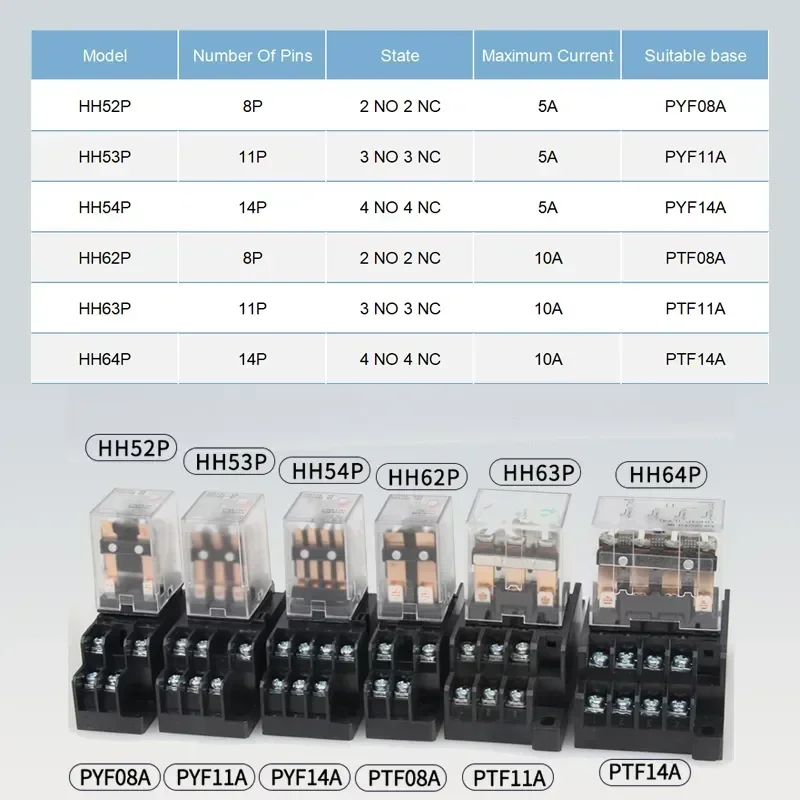

The HH52, 53 and 54 are a series of miniature general purpose relays specially designed for users demanding small size, sturdy construction and high electrical capacity. Mechanisms are furnished in polycarbonate dust-proof enclosures and are recommended for a multitude of electrical control applications for their reliability and compact size. Continuous duty coils, either AC or DC are available for voltages up to 240V AC or 120V DC. Contacts can be supplied in 2PDT, 3PDT, 4PDT arrangements. Continuous current ratings are 3, 5 and 7 Amps. Many terminal types are available for solder, plug-in or printed circuit board mounting.
■ Features
• 2PDT, 3PDT and 4PDT
• Reliable operation, long service life
• High dielectric strength

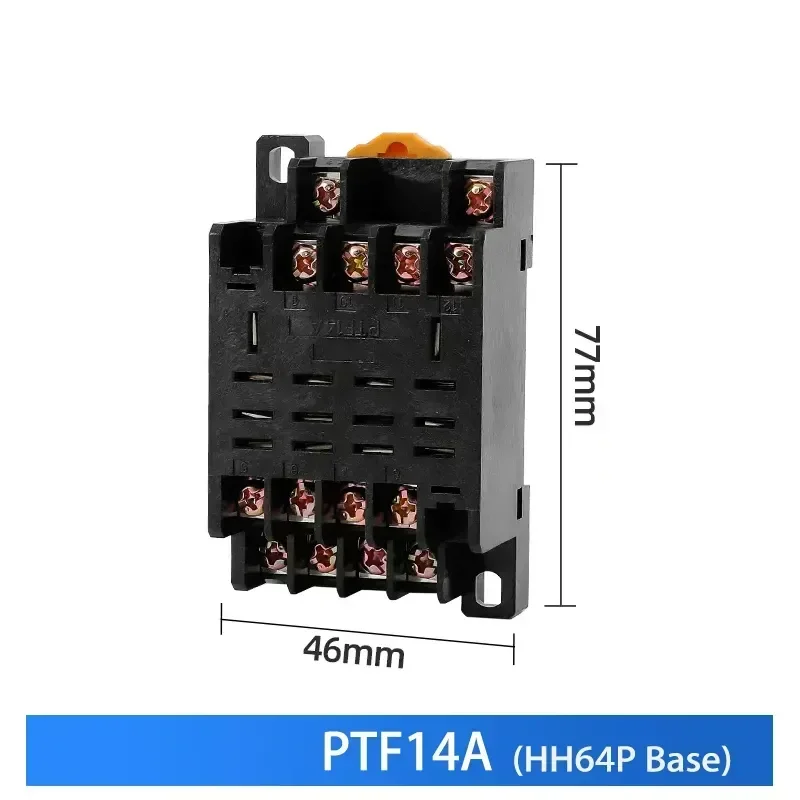

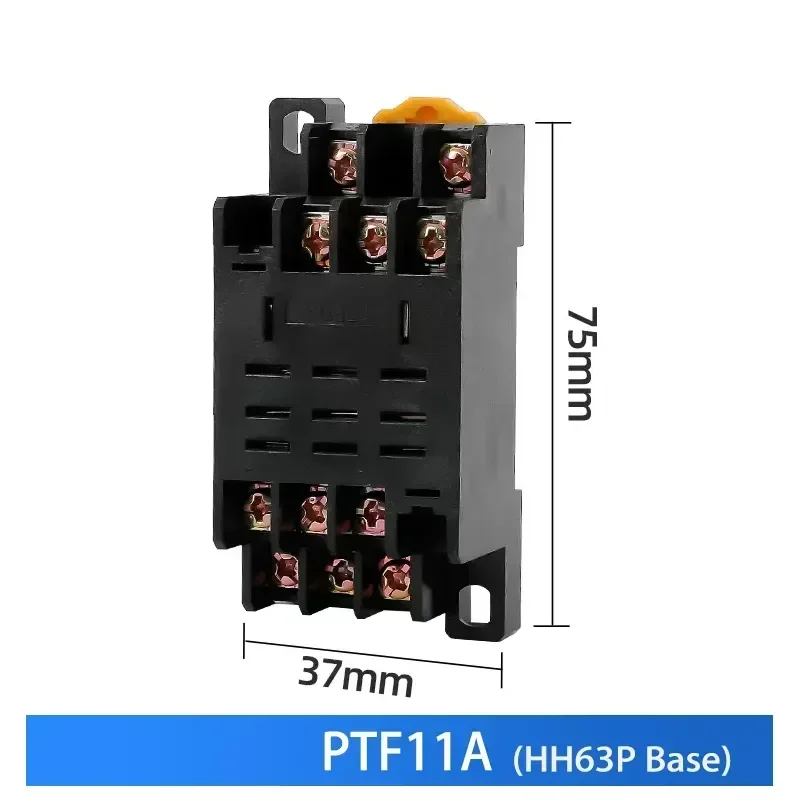

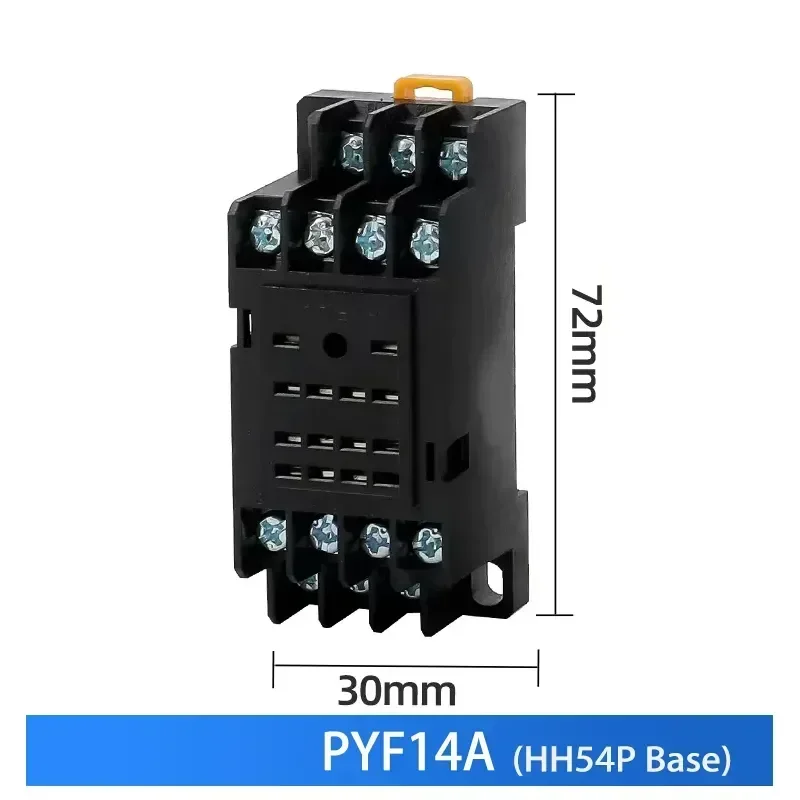

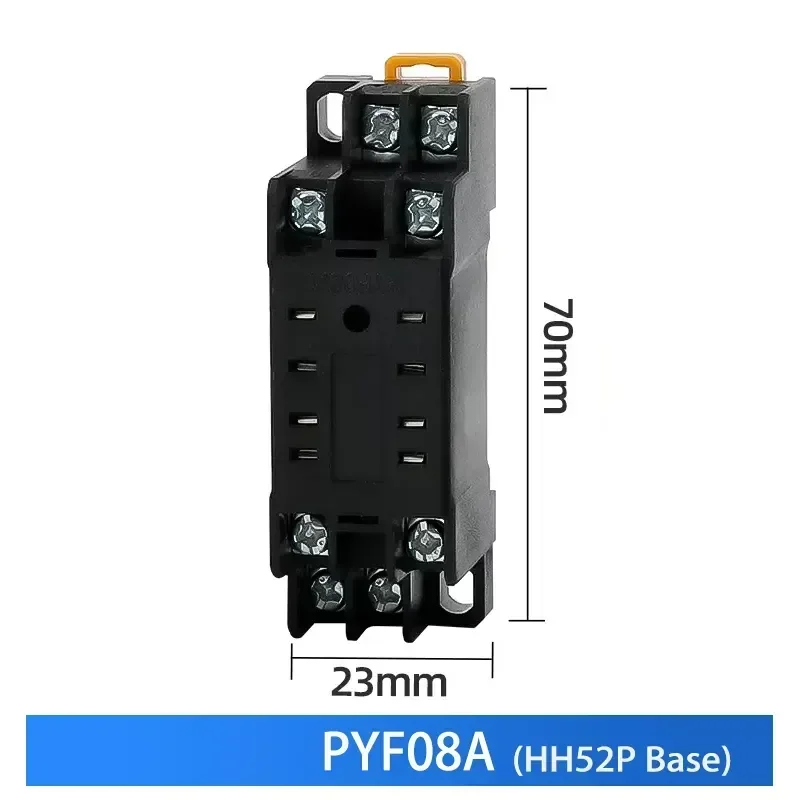

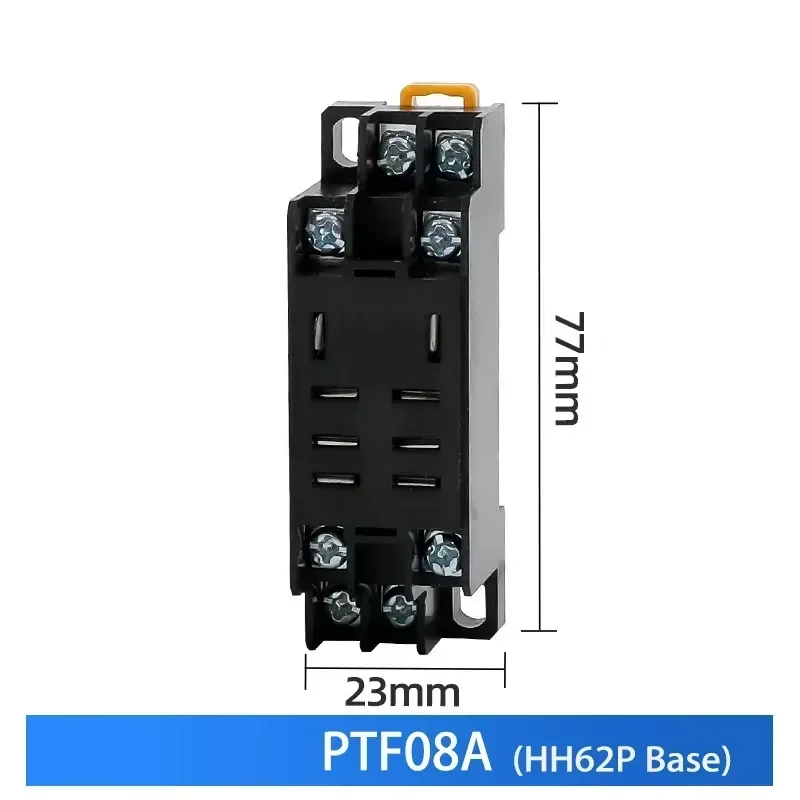

• Solder, PC board, wire wrap and
screw terminal socket

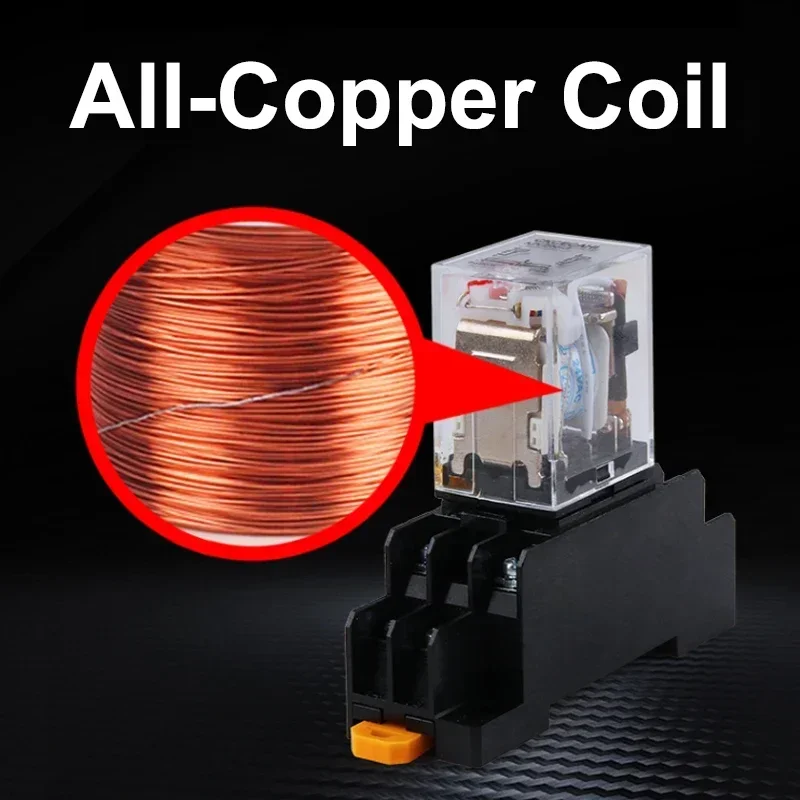

• AC or DC coils
• Barriered contacts for opposite
polarity available
• Dust proof enclosures
